3D FORGED ALUMINIUM HANDLEBAR WITH INTEGRATED DISPLAY

Dear Sirs,

ITM BIKE CONSULTANCY is thrilled to expand its product line by introducing new
3D FORGED ALUMINIUM HANDLEBAR WITH INTEGRATED DISPLAY

To know more about this product, reach out to export@itm.it or  agency@im.it

Click here to see the video

These handlebars are 3D forged and produced in monocoque one piece.

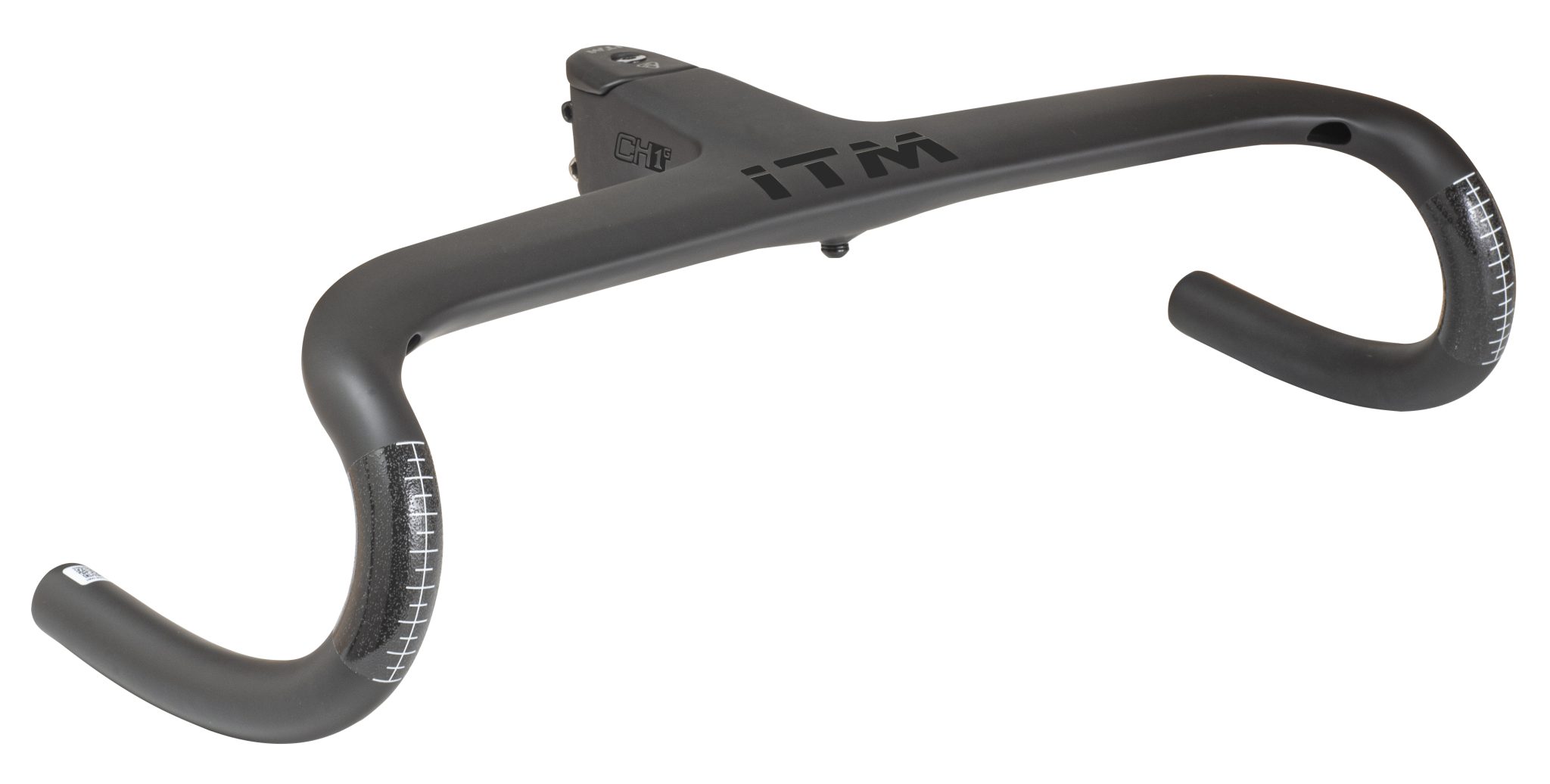

See here under some examples of once-piece forged handlebars.

SPECIFICATIONS

Fork Steerer Diameter 28.6
Back Sweep 9°
Rise 22mm
Display 45.5mm*54mm (about 2.2”)
Forged alum 6061
Plastic PC+ABS
Extension 80mm §Handlebar Length 680/700/720/750
Voltage DC 36/48 (customizable upon request)

Monitor
Motor assist level, speed, light, blue tooth status, male-function, battery
Protocol UART/CAN (can customized)
Unlock by sensor
APP
Voltage, mileage for single trip, mileage for total, battery%

CUSTOMIZING OPTIONS
We offer customizing options. Kindly provide us with the following:
1.  Wheel size
•2.  Controller sequence diagram
•3.  Protocol (UART/CAN)
•4.  Voltage

Based on the required lenght , these handlebars can be extra butted. They can also feature integrated internal dispay with one front light and 2 lights on the sides.

Being fully integrated, these handlebars fit on a 28,6 mm fork steerer and then blocked at fixed zero degrees with desired back swapped

They feature an elegant shape which positions themselves in between flat and semi rise. style and therefore applicable for  E-bike, MTB, trekking and city
bike.
